The Bishop of Oldenburg, traveling to the Kingdom of Jerusalem in 1212, was stunned by the luxury of the residences of the elite. According to Sir Steven Runciman in his "Families of Outremer," Oldenburg was particularly impressed by the Ibelin palace in Beirut:

Its windows opened some on the sea, some on to delicious gardens. Its walls were paneled with plaques of poly-chrome marble; the vaulted ceiling [of the salon] was painted to resemble the sky with its stars; in the center of the [salon] was a fountain, and round it mosaics depicting the waves of the sea edged with sands so lifelike that [the bishop] feared to tread on them lest he should leave a foot mark.

Unfortunately, nothing of this palace remains today.

The same is true of the Lusignan palace in Nicosia, but Volume 4 of A History of the Crusades: The Art and Architecture of the Crusader States, Hazard, Harry W. ed. provides the following summary:

The royal palace, adjoining the church of St. Dominic, seemed to travelers the finest in the world. Its great throne room, its balconies, its golden ornaments, its tapestries, pictures, organs, and clocks, its baths, gardens and menageries suggest the most sumptuous of medieval residences. (p. 175)

While both the above passages refer to palaces (baronial and royal respectively), the following is a more general commentary on Frankish domestic architecture in the crusader states. Writing after the re-conquest of Jerusalem by Saladin in 1187, Ibn-Khallikan wrote:

"The infidel had rebuilt [Jerusalem] with columns and plaques of marble...with fair fountains where the water never ceased to flow--one saw dwellings as agreeable as gardens and brilliant with the whiteness of marble; the columns with their foliage seemed like trees." (quoted in Hazard, p. 138.)

Yet only scattered fragments of this sophisticated urban secular architecture from the crusader period have survived into the present. Even these remains have largely been obscured by the changing styles and functions that altered the appearance of crusader structures almost beyond recognition in subsequent centuries.

However, descriptions such as those cited above as well as systematic analysis of the archeological evidence enables us to imagine a great deal. As a novelist writing about the crusader kingdoms, I am compelled to utilize all existing sources, both written and archaeological — and then add a hefty dose of imagination. What follows is a short survey of the key elements that would have defined an urban dwelling in the crusader kingdoms.

Due to a general scarcity of wood, the basic building material in the Middle East in the crusader period was stone and/or brick. The latter, and often the former, was plastered over and whitewashed, both inside and out, or faced with marble in the case of important and representational buildings. The floors of poorer dwellings were either beaten earth or cut out of the bedrock, while upper floors were plaster. In wealthier homes the floors were usually flagstone on the ground floor, marble or mosaic. Courtyards were usually paved with cobbles.

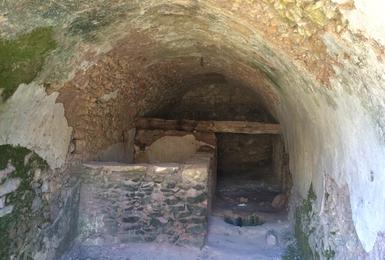

The basic building block of houses in the Holy Land were vaults. Barrel vaults were the easiest and most fundamental building block and could be stacked on top of one another at perpendicular angles for several stories. A good example of this is the Hospitaller Castle of Kolossi. Below are two images of vaulted chambers: one ground floor chamber from the Hospitaller castle at Kolossi, the second a ground floor wine press, very common in the crusader kingdoms.

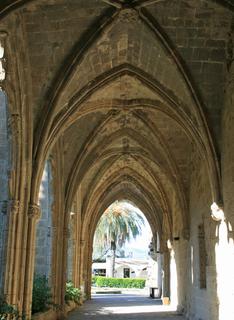

Groin vaults and rib-vaults, however, was also common, particularly in larger structures such as palaces, monasteries, customs houses, and the like. Here is an image of beautiful vaulting from Bellapais Monastery on Cyprus.















Most houses in the crusader states appear to have had at least one, and in urban areas -- particularly in the 13th century -- as many as three upper floors. The upper floors were often reached by means of an external stairway over a arch (see photo below), or by means of internal wooden stairs or even ladders through trap doors. In larger, rural structures, stairs could also be built into the thickness of the walls. The house below, located on Kythera, is much younger (17th century Venetian), but it has many of the features of crusader urban architecture.












Most buildings in the Middle East were crowned, then as now, by flat roofs (that might be decoratively crenelated) that often provided additional living or work space in the form of a roof-top terrace that could be shaded from the sun by canvas awnings, or a vine arbor. Whether used as a terrace or not, rooftops almost always collected rain water in a cistern.  Indeed, even the poorest and smallest of urban dwellings had cisterns, often several. All had settlement tanks to help purify the water.  Water could be pumped from these tanks to the kitchens or latrines.

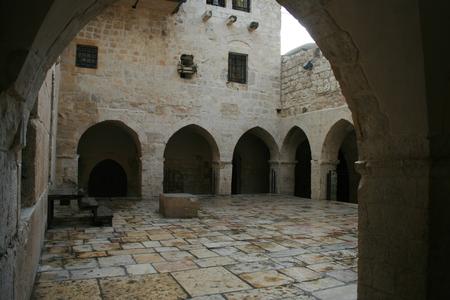

Many urban dwellings would have been built around one or a series of courtyards. These in turn contained cisterns or sometimes wells, kitchen and formal gardens, or working space, depending on the wealth of the occupant. Poorer residents, who could no afford a house large enough to surround one or more courtyards, often shared a communal courtyard. Around such a courtyard, several dwellings were clustered, all with access to the common courtyard. The courtyard at the start of this article is from Jerusalem has many medieval elements and does not look so very different from what it could have looked like in the 12th century.

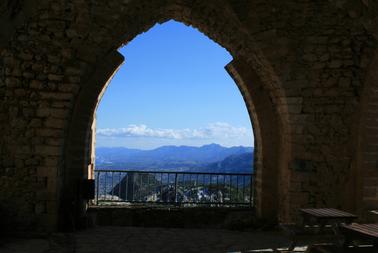

Despite the prevalence of courtyards, Frankish houses were not inward-looking like their Arab contemporaries. While the working class had workshops and store fronts that opened onto the street at ground level, the houses of the rich had beautiful balconies and logias that looked out over the streets from the upper stories. The roof of the logia in urban areas might be supported either by an arcade or by pillars. Some of these pillars were reclaimed Roman pillars, employed in a new function, but the Franks were skilled at producing pillars themselves and the capitals of these were famous -- even among their enemies -- for the lifelike quality of their decoration. In rural settings the logia could be even more dramatic as in the example below from St. Hilarion on Cyprus.

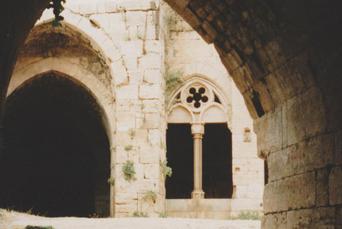

Doors throughout the Frankish territories from the mid-12th century until the end of Frankish rule were usually made by a wide, slightly pointed arch (such as that above). This arch, borrowed from the Arabs before the beginning of true Gothic architecture in the West, was the dominant, indeed iconic, shape of crusader architecture. Poorer dwellings or secondary doors, however, could be square. Windows could be either arched or square, with the Romanesque forms of “double-” or “triple-light” windows as common in the Holy Land as in the countries of the crusaders’ origin. Below  are two examples of windows from St. Hilarion and Krak de Chevaliers respectively.













Because there were major glass producing centers in the crusader states (notably Tyre and Beirut), window glazing was more common in the crusader states than in the West, a fact supported by both archaeological finds and descriptions. Archaeological evidence suggests the Franks used both plate glass and round glass set in plaster (the latter being presumably much cheaper and more common) for their windows.

As the description at the start of this essay indicated, interior décor could include poly-chrome marble, but mosaics and glazed tiles may also have been used. Certainly, a wide variety of crusader glazed pottery has been found, using cream colors, yellows, greens and blues. The pottery gives us some indication of what colors and motifs could have been used on floor and wall tiles, although the evidence is lacking. However, we also know that the Turks and Saracens were very fond of brilliant blues and turquoise tiles in later centuries, and these may also have been available to the crusaders. At least I like to imagine it so!

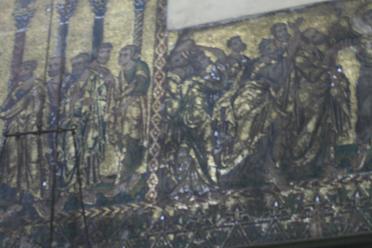

As for mosaics, the description at the start of the article is perhaps the best indication of quality and the fact that life-like motifs were possible in the crusader era. However, we should not forget that mosaics floors were very common in the Roman and Byzantine periods, and the many crusader residences in fact dated from earlier periods and retained these older tiles. Below is a picture of tiles that date back the 4th century AD and were allegedly commission by St. Helena. Particularly under the influence of the Byzantine brides of Baldwin III and Amalric I, Byzantine styles and artists were welcomed and employed in the crusader kingdoms. They would easily have produced tiles similar to those found in the Church of the Nativity in Bethlehem.













Last but not least, as the contemporary written descriptions stress, no description of urban architecture in the crusader states (at least for the “upper crust”) would be complete without reference to gardens. Frankish elites oriented their houses so that their (glazed) windows looked out at either views (such as the ocean) or gardens. The Holy Land offered a variety of beautiful vegetation from trees such a palms and olives, lemons and pomegranates, to flowers such as hibiscus and oleander. Frankish gardens would have been beautiful indeed.
